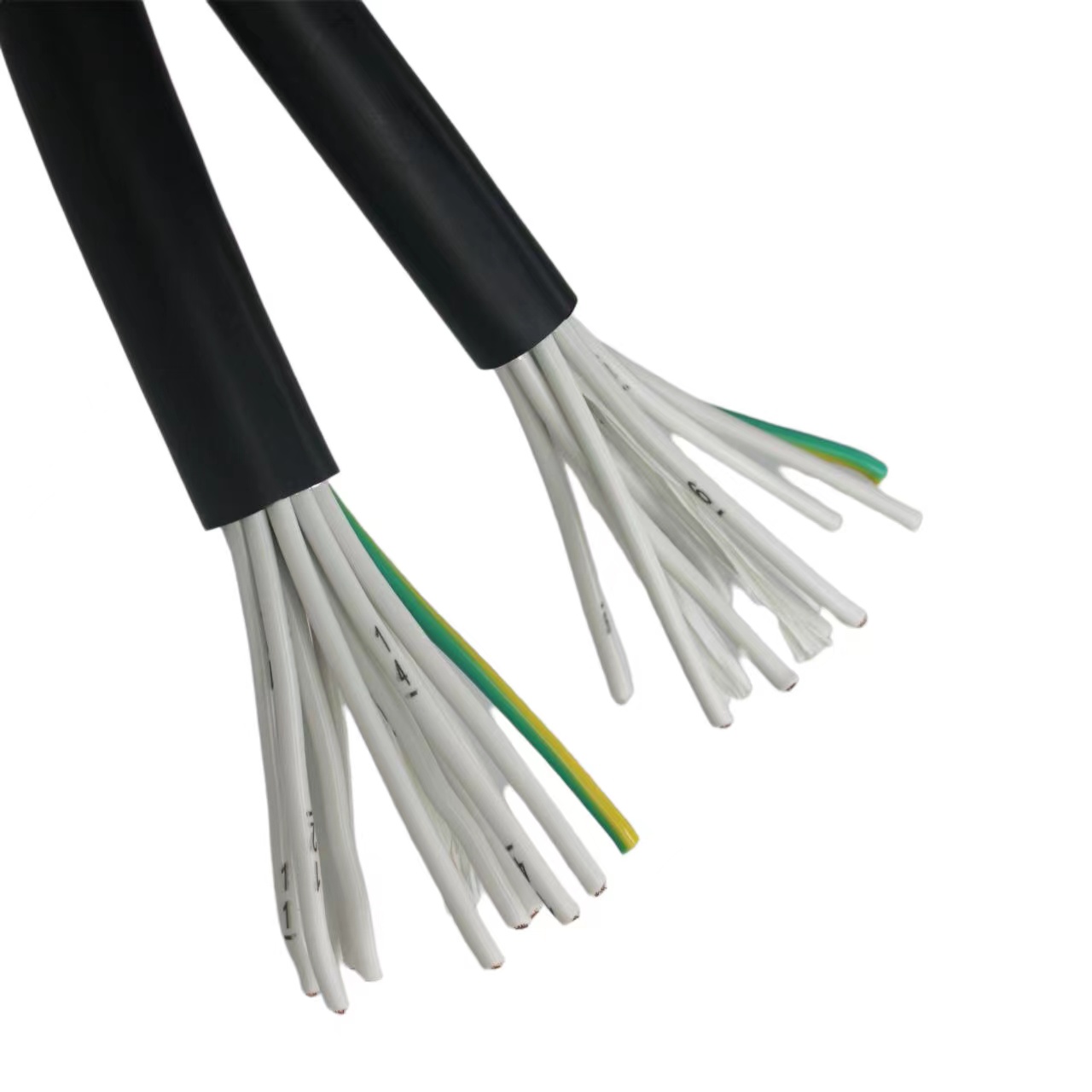

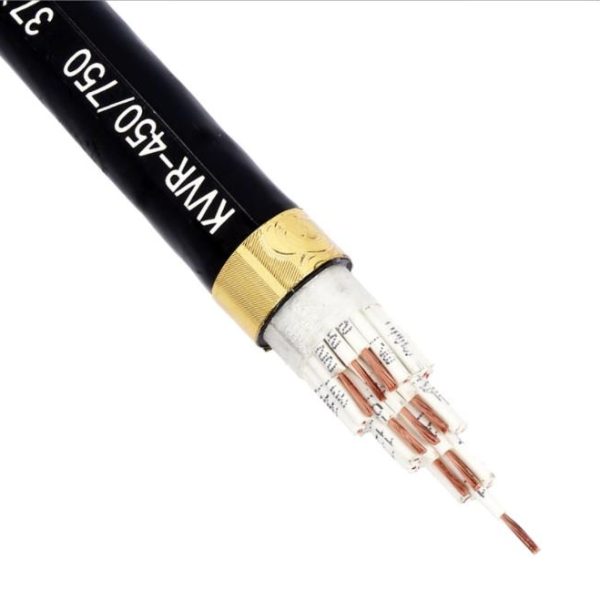

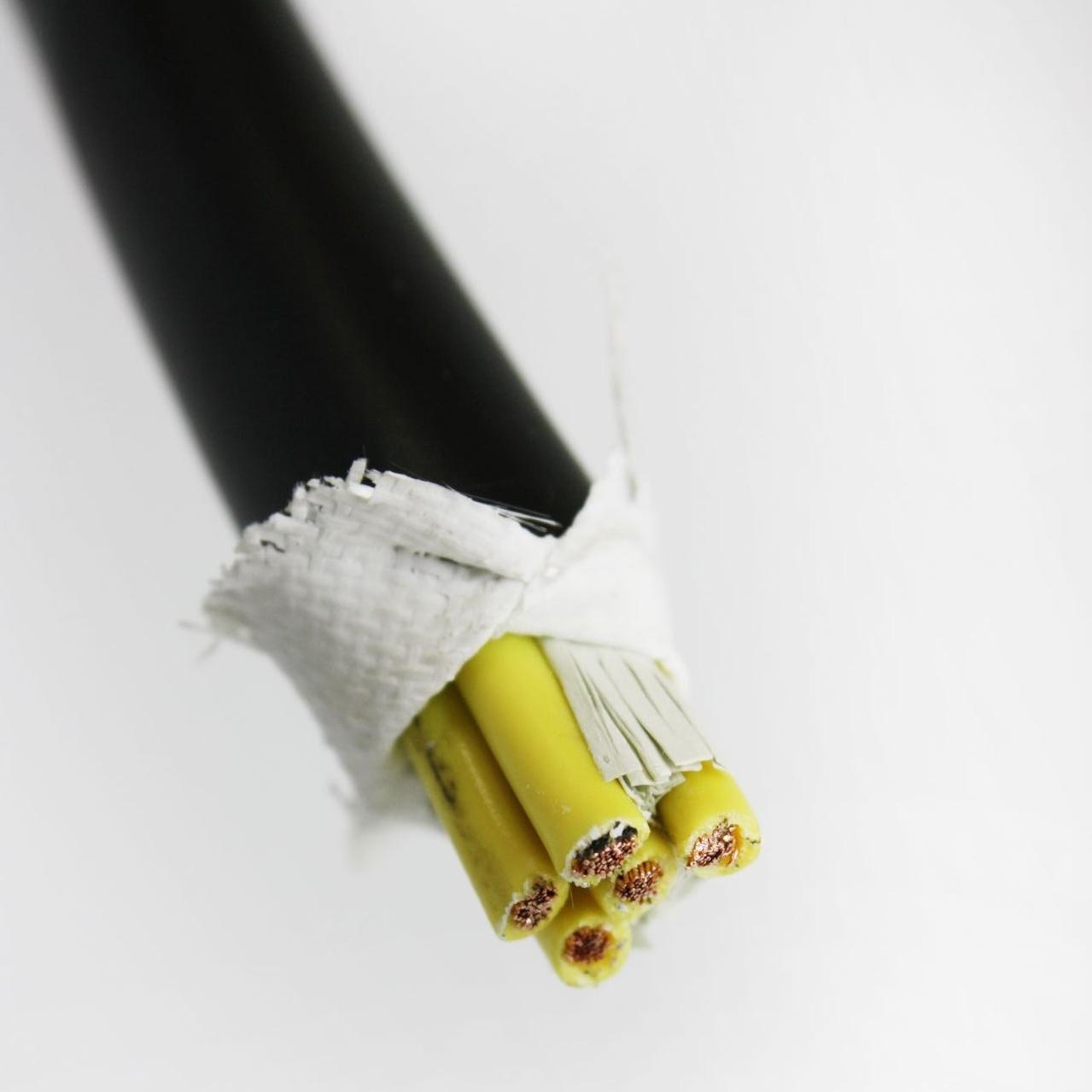

铜芯聚氯乙烯绝缘聚氯乙烯护套控制电缆KVVR 申易牌软电缆

适用范围：Application

适用于交流额定电压450/750V及以下控制，监控线路及保护线路。

执行标准：Standard GB9330

使用条件：Operating condition

额定电压：U₀/U： 450/750V；

工作温度：一般型号不高于70℃，型号后带105的不高于105℃：

敷设温度：不低于-15℃；

最小弯曲半径：无铠装的电缆应不小于电缆外径的6倍，有铠装或铜带屏蔽结构的电缆应不小于电缆外径的12倍。

型号及名称：Type and designation

型号	名称	主要使用范围
KVV	聚氯乙烯绝缘，聚氯乙烯护套，控制电缆	敷设在室内、电缆沟中、管道内及地下
KVVP	聚氯乙烯绝缘，聚氯乙烯护套，铜丝编织屏蔽控制电缆	敷设在室内、电缆沟中、管道内及地下，具有防干扰能力
KVVP2	聚氯乙烯绝缘，聚氯乙烯护套，铜带绕包屏蔽控制电缆	敷设在室内移动要求柔软、屏蔽的场合
KVV22	聚氯乙烯绝缘，聚氯乙烯护套，钢带铠装控制电缆	敷设在室内、电缆沟中、管道内及地下，能承受较大的机械外力使用
KVV32	聚氯乙烯绝缘，聚氯乙烯护套，细钢丝铠装控制电缆	敷设在室内、电缆沟中、管道、竖井内及地下，能承受一定的拉力作用
KVVR	聚氯乙烯绝缘，聚氯乙烯护套，控制软电缆	敷设在室内移动要求柔软等场合
KVVRP	聚氯乙烯绝缘，聚氯乙烯护套，铜丝编织屏蔽控制软电缆	敷设在室内移动要求柔软、屏蔽的场合

主要技术参数 Main technical properties

试验项目Test		指标Index
20℃时直流电阻 DC. Resist. At20℃≤ Ω/km	截面 Corss section mm²	0.5		0.75		1		1.5		2.5		4		6
	镀层 Plating	不镀锡	镀锡	不镀锡	镀锡	不镀锡	镀锡	不镀锡	镀锡	不镀锡	镀锡	不镀锡	镀锡	不镀锡	镀锡
	A类 A type	36	36.7	24.5	24.8	18.1	18.2	12.1	12.2	7.41	7.56	4.61	4.7	3.08	3.11
	R类 R type	39	40.1	26	26.7	19.5	20.2	13.3	13.7	7.98	8.21	4.95	5.09	3.3	3.39
试验电压 Testing Voltage	3kV/5min
绝缘电阻 Insul. Resistance	应符合GB9330.2

规格尺寸:Specification

芯数×截面	电缆参考外径 Calculated overall diameter of cable mm							参考重量Calculated wt.kg/km
No.of cores× Nom.Cross- section area	KVV	KVVP	KVVP2	KVV22	KVVR	KVVRP	KVV32	KVV	KVVP	KVVP2	KVV22	KVVR	KVVRP
mm²	A	A	A	A	R	R	A	A	A	A	A	R	R
2×0.75	7.0	7.8	7.6	–	–	7.0	7.8		64	80	–	56	78
2×1.0	7.4	8.2	8.0	–	–	7.4	8.3	–	88	95	–	64	86
2×1.5	8.4	9.2	9.0	11.5	11.5	8.4	9.2	–	94	120	–	90	113
2×2.5	9.5	10.3	10.1	12.6	12.6	9.8	10.6	12.8	135	160	–	112	140
2×4	10.5	11.9	11.1	13.9	13.9	11.4	12.8	14.6	160	230	–	178	200
2×6	11.5	12.8	12.1	14.9	14.9	13.4	14.6	16.0	198	295	–	320	275
3×0.75	7.4	8.2	8.0	–	–	7.4	8.5	–	78	100	–	65	90
3×1.0	7.9	8.7	8.5	–	–	7.8	8.8	–	88	115	–	76	103
3×1.5	8.9	9.7	9.5	12.0	12.0	8.9	9.6		115	142	–	104	130
3×2.5	10.0	10.8	10.6	13.2	13.2	10.4	11.3	13.5	163	195	–	158	196
3×4	112.0	12.6	11.8	14.3	14.3	11.9	13.5	15.5	205	285	–	230	268
3×6	12.7	14.0	13.3	15.3	15.3	14.2	15.2	17.0	290	365	–	304	358
4×0.5	–	–	–	–	–	8.0	9.0	–	–	–	–	80	113
4×0.75	8.0	8.8	8.3	–	–	8.3	9.3	–	88	115	–	90	133
4×1.0	8.4	9.2	9.0	–	–	8.9	9.9	–	101	130	–	102	145
4×1.5	9.4	10.4	10.0	12,7	12.7	10.0	11.0	–	136	175	–	140	182
4×2.5	11.0	12.4	11.6	14.7	14.7	11.5	13.3	15.0	195	270	395	203	280
4×4	12.7	13.5	13.3	16.0	16.0	13.4	15.0	16.9	288	345	480	290	348
4×6	13.7	14.7	14.3	17.2	17.2	15.7	16.5	18.0	370	450	595	405	474
5×0.5	一	–	–	–	8.6	9.6	–	–	–	–	–	96	130
5×0.75	8.0	8.6	8.6	–	9.2	10.2	–	107	137	120	–	111	147
5×1.0	9.0	9.6	9.6	–	9.7	10.7	–	119	156	140	–	127	167
5×1.5	10.4	11.0	11.0	13.7	10.7	11.7	–	163	203	178	–	169	213
5×2.5	12.7	14.3	14.3	15.7	13.0	14.0	16.0	254	314	275	446	263	321
5×4	13.7	15.3	15.3	17.2	14.6	16.2	18.0	342	409	365	560	348	410
5×6	14.9	1&3	16.3	18.7	17.2	18.0	19.5	446	531	472	705	474	530
7×0.5	–	–	–	–	9.2	10.2	–	–	–	–	–	113	153
7×0.75	9.4	10.2	10.0	13.2	9.8	10.8	–	130	164	146	303	139	176
7×1.0	10.0	10.8	10.6	13.7	10.4	11.4	–	151	189	171	324	161	197
7×1.5	11.2	12.2	12.8	15.1	1 1.4	13.0	16.0	205	266	225	412	217	277
7×2.5	13.6	14.6	14.2	16.9	14.2	15.4	17.2	318	343	343	527	339	420
7×4	15.0	16.0	15.6	18.4	16.2	17.7	19.5	439	513	475	666	450	511
7×6	16.5	17.5	17.1	20.1	1&8	19.5	21.0	586	670	620	870	612	677
8×0.5	–	–	–	–	10.2	11.2	一	–	–	–	–	131	172
8×0.75	10.0	10.8	10.6	14.2	10.8	118.0	–	145	184	162	320	156	203
8×1	10.5	11.3	11.1	14 6	11.1	13.2	–	169	227	193	355	186	245
8×1.5	13.0	14.0	13.6	16.2	13.3	14.7	17.5	248	310	273	442	265	328
8×2.5	15.0	16.0	15.6	18.2	15.8	17.3	18.5	366	471	390	594	388	468
8×4	16.4	17.4	17.0	20.0	18.7	19.0	22.5	499	593	525	760	–	–
8×6	18.5	19.5	19.1	22.0	19.8	21.6	24.0	688	771	723	966	–	–
10×0 5	–	–	–	–	11.5	12.8	–	–	–	–	–	156	214
10 × 0.75	11.5	12.9	12.1	15.3	12 0	14 3	–	178	252	198	382	194	267
10×1	12.7	13.7	13.3	15.7	13.5	14.8	–	228	291	258	415	243	313
10×1.5	14.7	15.7	15.3	18.0	15.2	16.4	19.0	309	384	334	534	327	396
10×2.5	17.3	18.3	17 9	20.5	17.7	19.4	22.5	447	544	474	731	471	558
10×4	19.2	20.2	19.8	22.5	20.5	22.6	24.5	629	730	668	929	–	–
10×6	21.0	22.0	21.6	24.5	23.5	25.3	26.0	848	990	893	1110	–	–
12×0.5	一	–	–	–	1 1.7	13.2	–	–	–	–	–	178	230
12×0.75	12.5	13.5	13.1	15.7	13.1	14.3	–	222	282	250	419	240	298
12×1	13.2	14.2	13.8	16.6	13.7	15.3	–	261	325	291	464	278	355
12× 1.5	15.2	16.2	15.8	18.2	15.7	17.0	19.5	354	433	378	586	375	446
12×2.5	17.5	18.5	1&1	21.7	18.6	20.3	23.1	518	631	548	811	541	650
12×4	20.0	21.0	20.6	23.4	21.0	23.3	25.5	732	840	768	1030	–	–
12×6	22.0	23.0	22.6	25.5	24.5	26.4	27.0	999	1130	1030	1320	–	–
14×0.5	–	–	–	–	12.1	14.2	–	–	–	–	–	201	280
14×0.75	13.2	14.2	13.8	16.2	13.6	15.0	–	249	302	270	450	270	320
14×1.0	13.7	14.7	14.3	17.2	14.5	16.0	–	295	350	321	607	314	381
14×1.5	15.7	16.7	16.3	19.5	16.2	17.5	20.0	402	472	428	665	426	491
14×2.5	18.2	19.2	18.8	22.0	19.2	21.2	24.0	595	700	619	880	620	732
14×4	21 0	22.0	21.6	24.0	–	一	26.0	830	930	880	1162	–	–
14×6	23.0	24.0	23.6	26.5	–	一	28.0	1150	1285	1290	1500	–	–

芯数×截面	电缆参考外径 Calculated overall diameter of cable mm							参考重量Calculated wt.kg/km
No.of cores×	KVV	KVVP	KVVP2	KVV22	KVVR	KVVRP	KVV32	KVV	KVVP	KVVP2	KVV22	KVVR	KVVRP
Nom.Cross- section area	KVV	KVVP	KVVP2	KVV22	KVVR	KVVRP	KVV32	KVV	KVVP	KVVP2	KVV22	KVVR	KVVRP
mm²	A	A	A	A	R	R	A	A	A	A	A	R	R
16×0.5	–	–	–	–	13.5	14.7	–	–	–	–	–	245	300
16×0.75	13.7	14.7	14.3	16.7	14.5	15.7	–	279	337	300	490	299	352
16× 1.0	14.2	15.2	14.8	17.9	15.2	16.5	–	326	395	358	542	350	419
16×1.5	16.2	17.2	16.8	20.0	17.3	18.5	22.5	445	537	475	720	474	530
16×2.5	19.5	20.5	20.1	23.0	21.0	22.5	24.6	691	796	710	970	724	818
19×0.5	–	–	–	–	14.0	15.3	–	–	–	–	–	274	323
19×0.75	14.2	15.2	14.8	17.2	15.0	16 3	18.5	320	380	335	530	341	392
19×1.0	15.2	16.2	15.8	19.0	16.0	17.3	19.5	372	453	410	625	397	475
19×1.5	17.5	10.5	18.1	21.0	18.5	20.0	23.5	520	629	544	800	546	626
19×2.5	20.5	22.0	21.1	24.0	22.0	23.4	25.5	799	895	803	1092	836	1015
24×0.5	–	–	–	–	16.2	17.4	–	–	–	–	–	327	380
24×0.75	16.5	17.5	17.1	20.0	17.4	18.7	22.5	390	450	412	657	426	492
19×1.0	17.5	18.5	1&1	21.2	18.2	20.0	23.5	462	552	500	750	498	590
19×1.5	20.5	21.5	21.1	23.5	21.5	23.0	26.0	670	754	685	978	706	806
19×2.5	24.0	25.5	24.6	27.6	25.5	27.0	30.0	1000	1140	1013	1301	1050	1185
27×0.5	–	–	–	–	16.5	17 9	–	–	–	–	–	349	<102
27×0.75	16.7	17.7	17.3	20.5	17.8	19.2	23.0	428	503	450	710	468	530
27×1.0	17.7	18.7	18.3	21.7	18.7	20.5	24.0	512	605	559	810	547	680
27×1.5	21.0	22.0	21.6	24.5	22.0	23.5	26.5	732	822	750	1058	787	940
27×2.5	24.5	25. B	25.5	27.5	26.2	27.7	30.5	1170	1275	1115	1420	1162	1290
30×0.5	–	–	–	–	17.0	1&3	–	–	–	–	–	395	432
30×0.75	17.5	18.5	18.1	21.0	18.2	19.5	23.5	461	560	529	740	511	585
30×1.0	19.0	20.0	19.6	22.3	19.8	21.0	24.5	581	651	608	826	618	730
30×1.5	21.5	22.5	22.1	25.0	22.6	24.0	27.0	810	922	822	1120	856	1055
30×2.5	25.5	27.0	26.1	28.5	28.0	29.5	31.5	1280	1380	1215	1620	1276	1390
37×0.5	–	–	–	–	18.2	19.9	–	–	–	–	–	444	520
37×0.75	19.0	20.0	19.6	22.4	20.2	22.0	24.5	571	654	595	868	623	710
37×1.0	20.0	21.0	20.6	23.8	21.5	23.0	25.5	690	762	724	1000	744	880
37×1.5	23.2	24.2	23.8	26.5	24.3	26.0	29.5	975	1092	1021	1312	1018	1175
44×0.5	–	–	–	–	21.0	22.5	–	–	–	–	–	550	660
44×0.75	21.4	22.4	22.0	24.5	22.5	24.0	26.5	682	776	700	1000	759	900
44× 1.0	22.5	23.5	23.1	25.5	24.0	25.5	28.0	800	933	640	1154	868	1020
44×1.5	26 4	27.4	27.0	29.5	27.5	29.0	32.0	1200	1294	1 148	1640	1207	1361
48×0.5	–	–	–	–	21.2	22.5	–	–	–	–	–	589	700
48×0.75	21.5	23.0	22.0	24.5	23.0	24.5	27.0	822	910	845	1050	854	950
48×1.0	23.0	24.0	23.6	26.0	24.4	26 0	29.0	899	1020	925	1210	933	1070
48×1.5	26.2	27.5	26.8	31.0	27.3	29.5	33.0	1248	1430	1270	1900	1299	1442
52×0.5	–	–	–	–	21.7	23.0	–	–	–	–	–	635	750
52×0.75	22.0	23.0	22.6	25.1	23.5	25.0	27.5	873	995	899	1130	910	1010
52×1.0	23.5	24.5	24.0	26.6	25.0	26.5	29.5	994	1120	1024	1300	1012	1180
61 ×0.5	–	–	–	–	23.0	24.5	–	–	–	–	–	680	793
61 ×0.75	23.5	25.0	24.1	26.5	25.0	26.5	29.5	920	1030	960	1245	980	1090
61×1.0	24.7	26.0	25.3	2S.2	26.5	28.0	31.0	1141	1270	1 180	1455	1140	1310
